Pipe Correlation Leak Detection
Pipe correlation is an advanced acoustic leak detection technique used to investigate hidden leaks within pressurised water pipework, particularly underground water mains.
The technology works by placing sensitive acoustic sensors at two suitable points along a pipe. These sensors detect sound and vibration generated by escaping water, allowing specialist correlation equipment to analyse the time difference between the signals.
By combining these measurements with information about the pipe's length, material and characteristics, our engineers can calculate the likely position of a leak along the pipe.
At Maystone Leak Detection, we use pipe correlation to help locate difficult underground water leaks and reduce unnecessary excavation. It is particularly useful for long pipe runs and situations where conventional acoustic listening methods provide inconclusive results.
Technology:
Pipe Correlation
Best for: Underground mains water supply leaks and pressurised pipework.
Invasive or Non-invasive: Generally non-invasive where suitable access points are already available. Sensors must be connected to accessible points along the pipework, and additional access may be required in some situations.
Detects: Acoustic signals associated with leaks within suitable pressurised water pipes.
Used alone or with another technology? May be used independently or alongside acoustic profiling, tracer gas and pressure testing, depending on the investigation.
Suitable for: Domestic & commercial properties.
How does pipe correlation work?
Pipe correlation uses specialist acoustic sensors positioned at two accessible points along a pressurised water pipe, usually on either side of a suspected leak.

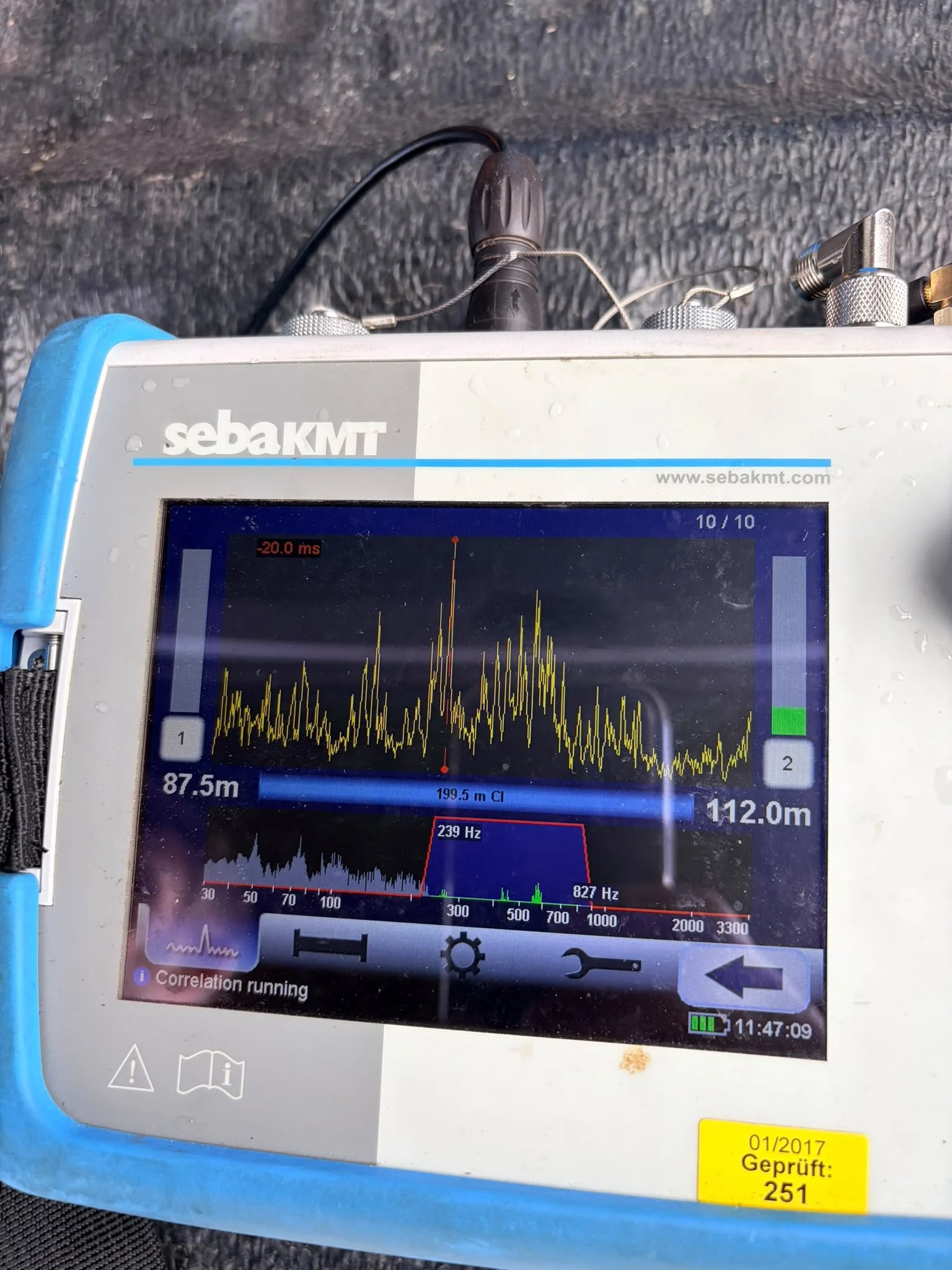

When water escapes through a defect, it generates sound and vibration that travel along the pipework. The sensors detect these signals, and a correlator analyses the difference in the time taken for the sound to reach each sensor.
Using information about the distance between the sensors and the speed at which sound travels through the pipe, the equipment calculates the likely position of the leak.
The accuracy of the result depends on factors including pipe material, diameter, pressure, background noise and the quality of the acoustic signals. Our engineers interpret the results alongside other investigation findings before recommending any necessary excavation or repairs.
When is pipe correlation useful?
Underground mains water leak detection
Large commercial properties
Areas where excavation is difficult
When standard acoustic methods are less accurate
Hidden underground pipework
Pressurised water systems
Long pipe runs
Complex leak investigations
How does Maystone use pipe correlation for leak detection?
Our engineers use pipe correlation when investigating suspected leaks within underground water mains and other suitable pressurised pipework, particularly where the exact location is difficult to establish using conventional acoustic listening methods.

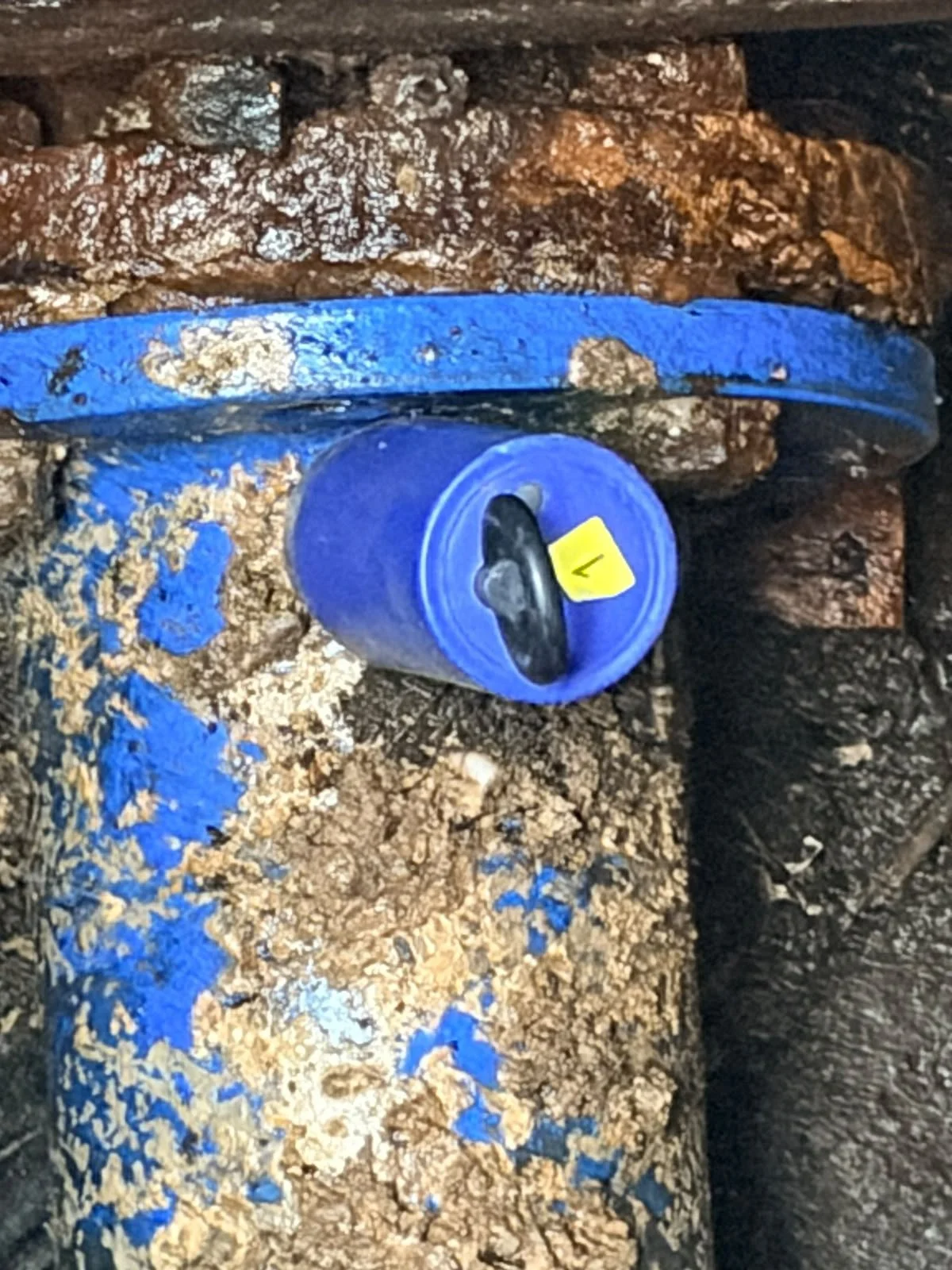

After assessing the pipe route, material and available access points, we position specialist acoustic sensors at suitable locations along the pipe.

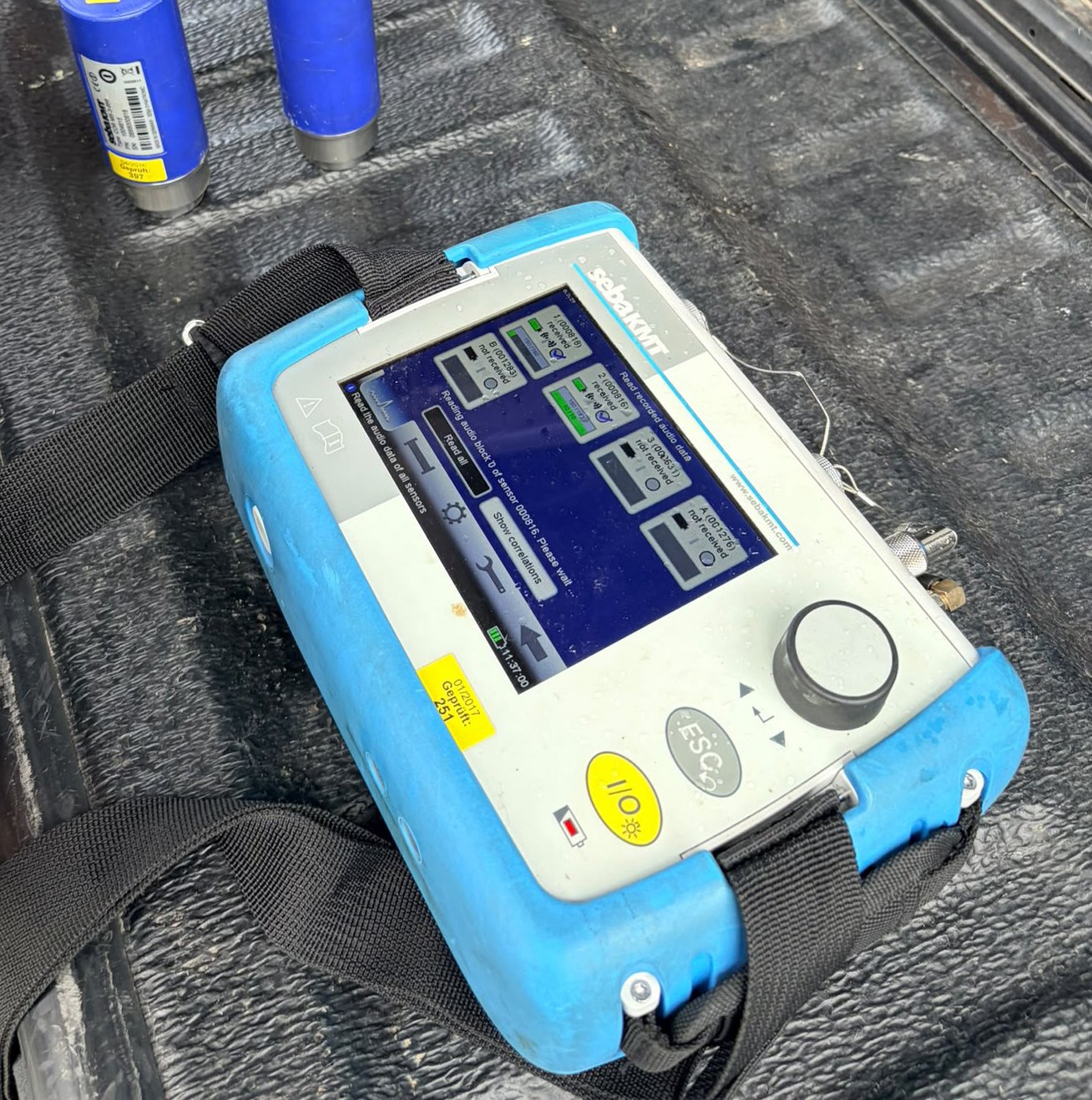

The correlator compares the sound signals received by the sensors and calculates the likely position of a leak between them.
This can be particularly useful on longer pipe runs, where sound may travel considerable distances through the pipework and the loudest audible signal may not be directly above the leak.
Where necessary, we combine correlation results with acoustic profiling, tracer gas or other appropriate investigation methods to improve confidence in the suspected location before recommending targeted excavation or repairs.
Benefits and limitations of pipe correlation leak detection:
Highly accurate leak location
Reduces unnecessary excavation
Ideal for underground pipework
Works over long distances
Non-invasive detection method
Useful where acoustic methods struggle
Suitable for commercial environments
Provides confidence before repairs
Requires access to the pipework,
Sensors need to be placed at suitable points along the pipe to accurately calculate the leak location.
Best suited to pressurised systems,
It is most effective where escaping water creates a detectable acoustic signal.
Pipe material can affect results,
Different pipe materials can influence how sound travels and how easily a leak can be detected.
Requires accurate pipe information,
Knowing the pipe route and characteristics can help improve the accuracy of the results.
When do we use pipe correlation?
Pipe correlation is particularly useful for investigating leaks within underground water supply pipes where the location of the leak is difficult to establish.
At Maystone Leak Detection, we may use this technology during:
Water Mains Leak Detection
Investigating hidden leaks within underground water supply pipes beneath gardens, driveways, roads and other surfaces.
Commercial Leak Detection
Locating suspected leaks within suitable pressurised water networks serving commercial premises, managed estates and larger buildings.
Domestic Leak Detection
Investigating concealed water supply pipes serving residential properties, particularly where longer underground pipe runs are involved.
Why we combine technologies
At Maystone Leak Detection, we understand that every leak is different, which is why we never rely on a single detection method in isolation. While each technology has its own strengths, combining multiple techniques allows our engineers to build a clearer picture of what is happening within your property.
By comparing the results from advanced technologies such as thermal imaging, acoustic listening, moisture mapping, tracer gas testing and other specialist methods, we can accurately confirm the source of a leak before recommending any repairs.
This approach helps us provide a more accurate diagnosis, reduce unnecessary disruption and ensure the right solution is used for your specific situation.
Our leak detection technologies include:
Common Questions about pipe correlation for leak detection:
-
Pipe correlation is an advanced acoustic leak detection method that uses sensors placed at strategic points along a pipe to analyse sound waves and accurately calculate the location of a leak.
-
Pipe correlation is particularly effective for locating underground mains water leaks and leaks within pressurised pipe systems where the exact location is difficult to identify.
-
Pipe correlation can provide a highly accurate leak location by comparing sound signals from multiple points along the pipe, helping engineers identify the area requiring repair.
-
Standard acoustic methods can sometimes be affected by how sound travels through different pipe materials and distances. Pipe correlation helps overcome these challenges by analysing the difference between signals from multiple sensors.
-
Pipe correlation can often help locate underground water leaks without exploratory excavation, provided suitable access points are available for the sensors. Although excavation may still be required to repair the damaged pipe, accurately identifying the suspected location can help minimise unnecessary digging.
-
Yes, pipe correlation can be used on suitable plastic water pipes, although detecting leak noise can be more challenging than with some metal pipes. Sound travels differently through plastic, and the pipe material, diameter, pressure and distance between sensors can all affect the results. Our engineers assess these factors and may use additional investigation methods where necessary.
