Acoustic Pipe Microphones for Leak Detection
Acoustic pipe microphones, often called pipe mics, are specialist leak detection devices used to investigate hidden water leaks from inside suitable pipework. Unlike external acoustic listening equipment, a pipe microphone is inserted directly into a water-filled pipe, allowing our engineers to listen for sounds associated with escaping water.
At Maystone Leak Detection, we use pipe microphones to investigate difficult-to-locate leaks within underground and concealed water supply pipes. The microphone travels internally through the pipework, helping us identify changes in sound that may indicate the presence of a leak.
Where compatible locating equipment is available, the position of the pipe microphone can also be traced from above ground using CAT & Genny technology. This can help establish the route of previously unknown pipework and narrow down the likely leak location, reducing unnecessary excavation where possible.
Technology:
Pipe Microphones
Best for: Precisely locating leaks and tracing the route of hidden water pipes.
Invasive or Non-invasive: Requires access to the pipe. Testing may be minimally invasive where a suitable entry point already exists, although excavation may be necessary to create access.
Detects: Water leaks and the route of concealed or underground pipework.
Often used along side: Pipe microphones may be used alongside compatible CAT & Genny locating equipment, acoustic profiling, pressure testing or other appropriate investigation methods.
Suitable for: Domestic & commercial properties.
How do acoustic pipe microphones work?
Acoustic pipe microphones are specialist devices designed to travel through suitable water-filled pipework and detect sounds associated with escaping water.
Unlike conventional acoustic profiling, which involves listening from outside a pipe or through the ground, pipe microphones allow our engineers to investigate acoustic signals from within the pipe itself.
As the microphone moves through the system, changes in the sound of escaping water can help narrow down the likely location of a leak.
Where the equipment incorporates a compatible locating system, its position can also be traced from above ground. This allows engineers to relate the acoustic findings to the physical route of the concealed pipework.
The effectiveness of this method depends on the pipe's diameter, layout, internal condition and available access points.
When are pipe mics useful?
When the route of a pipe is unknown
Locating underground water leaks
When the pipe material is unknown
Where pipes run beneath buildings or structures
Pinpointing the location of escaping water
Investigating long or complex pipe runs
Before excavation or repair work
When other methods need further investigation
How does Maystone use pipe microphones for leak detection?
Our engineers use specialist pipe microphones to investigate suspected leaks within suitable underground and concealed water supply pipes.
The microphone is inserted into the water-filled pipe through an accessible entry point and carefully advanced along the pipework. As it travels through the system, our engineers listen for changes in acoustic signals that may indicate escaping water.
Where compatible locating equipment is available, we can use CAT & Genny technology to help establish the microphone's position from above ground.
This allows us to investigate both the likely leak location and the route of concealed pipework, particularly where the original pipe route or material is unknown.
Where necessary, we combine these findings with acoustic profiling, pressure testing or other appropriate methods to improve confidence in the suspected location before recommending excavation or repairs.
Benefits and limitations of pipe microphone leak detection:
Highly precise leak locating
Traces hidden pipe routes
Combines two investigations in one
Reduces unnecessary excavation
Useful for unknown pipe routes
Useful beneath structures
Direct acoustic investigation
Suitable for complex investigations
Requires access to the pipe
A suitable entry point is required to insert the pipe microphone. If there is no accessible point above ground, a small excavation may be necessary to expose the pipe and create access.
Not suitable for every pipe system
The internal condition, diameter, layout and accessibility of the pipework can affect whether a pipe mic can be successfully inserted and how far it can travel.
Obstructions can restrict movement
Bends, valves, fittings or internal restrictions within the pipe may limit how far the microphone can travel.
When do we use pipe microphones?
Acoustic pipe microphones are particularly useful when investigating concealed water supply pipes where the route of the pipework or location of a suspected leak is unknown.
At Maystone Leak Detection, we may use this technology during:

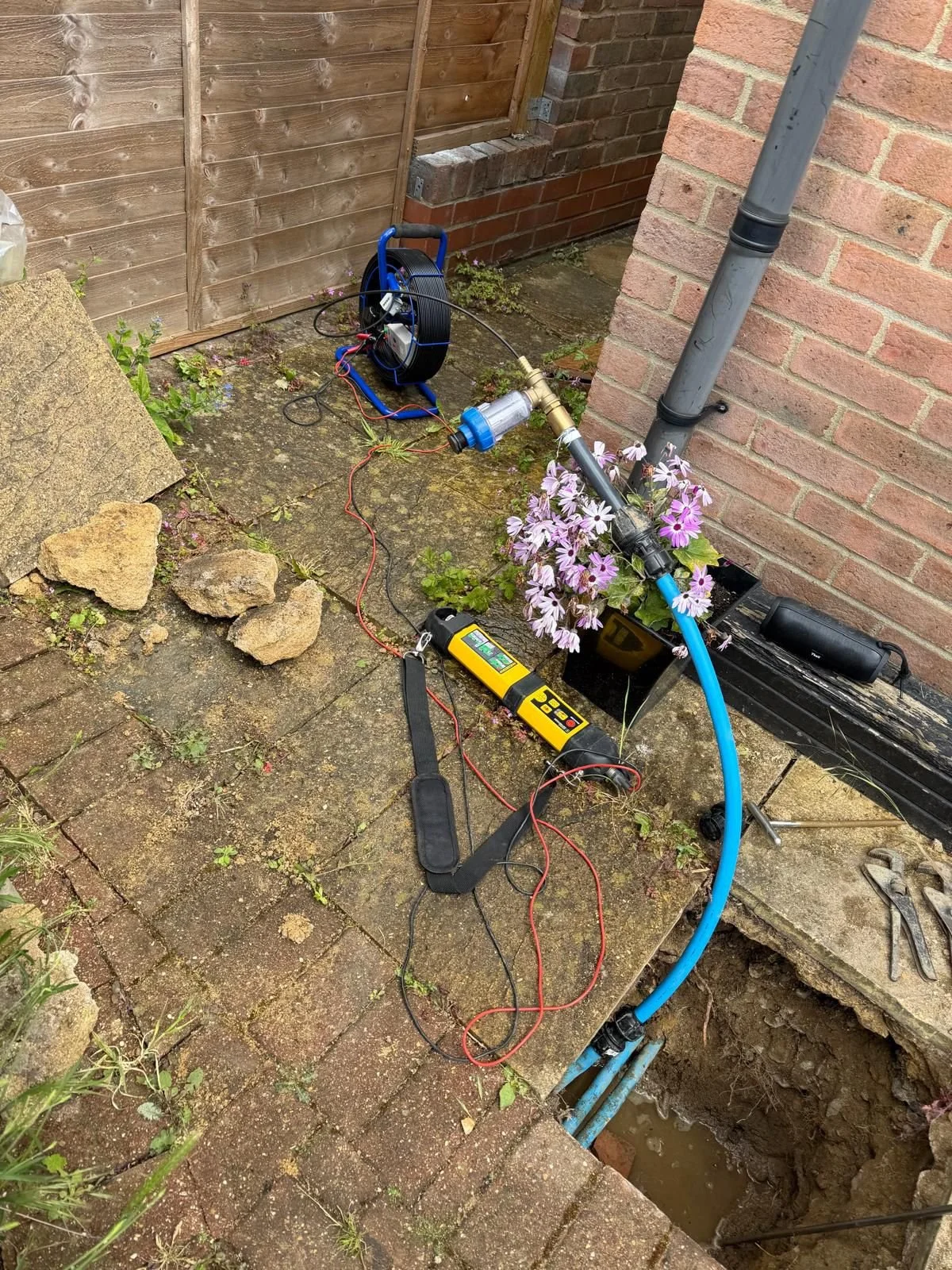

Pipe Tracing
Helping establish the route and position of suitable underground water pipes, particularly where existing plans are unavailable or inaccurate.
Water Mains Leak Detection
Investigating suspected leaks within underground water supply pipes and helping narrow down the likely location of escaping water.
Commercial Leak Detection
Investigating concealed water supply networks within commercial properties, managed estates and larger sites.
Domestic Leak Detection
Investigating difficult-to-locate leaks within suitable household water supply pipework.
Why we combine technologies
At Maystone Leak Detection, we understand that every leak is different, which is why we never rely on a single detection method in isolation. While each technology has its own strengths, combining multiple techniques allows our engineers to build a clearer picture of what is happening within your property.
By comparing the results from advanced technologies such as thermal imaging, acoustic listening, moisture mapping, tracer gas testing and other specialist methods, we can accurately confirm the source of a leak before recommending any repairs.
This approach helps us provide a more accurate diagnosis, reduce unnecessary disruption and ensure the right solution is used for your specific situation.
Our leak detection technologies include:
Common Questions about pipe microphones for leak detection:
-
A pipe mic is a specialist acoustic device that is inserted directly into a water-filled pipe. It allows our engineers to listen for the sound of escaping water from inside the pipe while also helping us trace the route of concealed pipework from above ground.
-
Yes. Pipe mics are particularly useful for investigating underground water supply pipes. Our engineers listen for the leak internally and then use specialist locating equipment to identify the position of the pipe mic from above ground, helping pinpoint the suspected leak location.
-
Yes. We can use CAT & Genny locating equipment to trace the position of the pipe mic from the surface. This can help establish the route of hidden pipework where its location is unknown or uncertain.
-
Not necessarily. If there is a suitable existing access point, the pipe mic can be inserted without excavation. Where no accessible entry point is available, a small area may need to be excavated to expose the pipe. Accurately tracing the pipe and leak can then help minimise any further excavation required.
